Picolo Pro 2

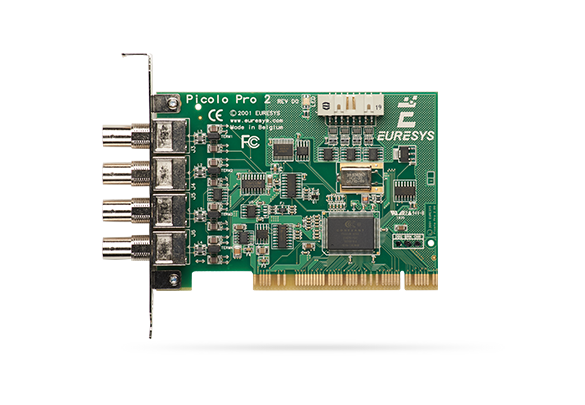

PCI video capture card with four BNC connectors for standard PAL/NTSC cameras
© EURESYS S.A. - Subject to change without notice
8/21/2024 Datasheet PCI video capture card with four BNC connectors for standard PAL/NTSC cameras /--/uploads/2024/08/1157_PicoloPro2_1.png)
SpecificationsMechanical
Host bus
Camera / video inputs
General Purpose Inputs and Outputs
Software
Environmental conditions
Certifications
Video delivery
Ordering Information
Offices
|
Specifications
Mechanical
- Form factor
PCI card
- Format
Standard profile, half-length, 32-bit Conventional PCI card
- Dimensions
L 119.91 mm x H 84.83 mm
- Weight
Net weight: 121 g [4.3 oz]
Gross weight: 222 g [7.8 oz]
Host bus
- Standard
PCI 32-bit, 33 MHz
- DMA
32-bit
- Power consumption
Max. 1.7 W (240 mA @ +5V, 10 mA @ +12V, 30 mA @ -12V)
Camera / video inputs
- Camera interface standard
NTSC, PAL, RS-170, CCIR
- Termination resistor
Selectable using jumpers on the PCB
- Native resolution
Square pixels, broadcast and custom resolutions
- Frame rate
Up to 25/30 images per second, 50/60 fields per second
- Number of cameras
4
- Interface standard(s)
NTSC-M, PAL-B/G, RS-170, CCIR
- Number of cameras (at full frame rate)
1
- Maximum number of cameras
4
- Connectors
VIDEO 1 to VIDEO 4: BNC female connectors on the bracket for composite video inputs
General Purpose Inputs and Outputs
- Number of lines
13 I/O lines (IO)
- Connectors
DIGITAL I/O: 16-pin two-row 0.1" shrouded header on the PCB
- Usage
General purpose IO
- Electrical specifications
IO: TTL-compatible I/O lines
Software
- APIs
MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers
DirectShow 32- and 64-bit filters (Windows only), for Microsoft Visual C++ compilers
- Host PC Operating System
Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures
Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures
Refer to release notes for details
Environmental conditions
- Operating ambient air temperature
0 °C to +50 °C / +32 °F to +122 °F
- Operating ambient air humidity
10% to 90% RH non-condensing
- Storage ambient air temperature
-20 °C to +70 °C/ -4 °F to +158 °F
- Storage ambient air humidity
10% to 90% RH non-condensing
Certifications
- KC Certification
Korean Radio Waves Act, Article 58-2, Clause 3
- Flammability
PCB compliant with UL 94 V-0
- RoHS
European Union Directive 2015/863 (ROHS3)
- REACH
European Union Regulation 1907/2006
- WEEE
Must be disposed of separately from normal household waste and must be recycled according to local regulations
- Electromagnetic - EMC standards
European Council EMC Directive 2004/108/EC
United States FCC rule 47 CFR 15
- EMC - Emission
EN 55022:2010 Class B
FCC 47 Part 15 Class B
- EMC - Immunity
EN 55024:2010 Class B
EN 61000-4-2
EN 61000-4-3
EN 61000-4-6
Video delivery
- Raw video format(s)
Planar, packed, YUV and RGB color formats
- Deliverable video resolution (SD)
Frame, field, CIF, QCIF and custom image formats
Ordering Information
- Product code - Description
PC1157 Picolo Pro 2
- Related products
1687 Picolo Pro 2 PCIe
