Picolo Alert PCIe
4개의 BNC 커넥터로 최대 16대의 표준 PAL/NTSC 카메라를 지원하는 PCIe 비디오 캡처 카드
브라켓 내장 4x BNC 커넥터
[1203] VEB 모듈(별매) 3개 장착 시 16x로 확장 가능
PCIe x1 버스
공유 비디오 디코더 16개, 초당 이미지 100/120장(초당 200/240 필드)
카메라 4대에서 실시간 취득, 카메라 최대 16대까지 신속하게 전환 가능
각 비디오 입력에 대해 독립적으로 프로그래밍 가능한 프레임 속도 및 취득 매개변수
Picolo Alert PCIe
© EURESYS S.A. - Subject to change without notice

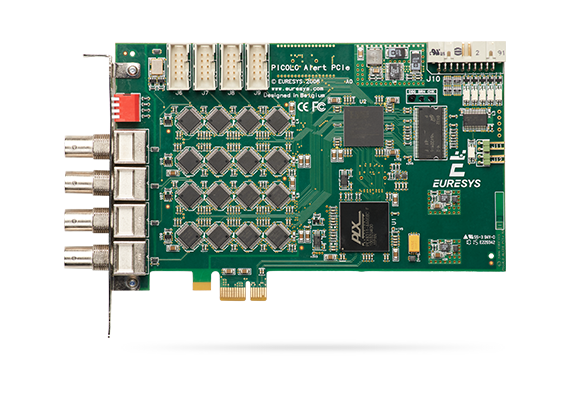

8/14/2024 Datasheet 4개의 BNC 커넥터로 최대 16대의 표준 PAL/NTSC 카메라를 지원하는 PCIe 비디오 캡처 카드 /--/uploads/2024/06/1641_PicoloAlertPCIe_1.png)
Main benefitsOther benefits사양Mechanical
Host bus
Camera / video inputs
Video delivery
Area-scan camera control
General Purpose Inputs and Outputs
Software
Environmental conditions
Certifications
Ordering Information
Offices
|
Picolo Alert PCIe
Main benefits
Other benefits
최신 드라이버 릴리스
사양
Mechanical
- Form factor
PCI Express card
- Format
Standard profile, half length, 1-lane PCI Express card
- Dimensions
L 167.65 mm x H 106.65 mm
L 6.6 in x H 4.38 in
- Weight
Net weight: 157 g [5.5 oz]
Gross weight: 257 g [9.1 oz]
Host bus
- Standard
PCI Express 1.0
- Link width
1 lane
- Link speed
2.5 GT/s (PCIe 1.0)
- DMA
32-bit
- Peak delivery bandwidth
256 MB/s
- Effective (sustained) delivery bandwidth
180 MB/s (Host PC motherboard dependent)
- Power consumption
Max. 9.5 W (2.9 A @ +3.3 V)
Camera / video inputs
- Camera interface standard
NTSC, PAL, RS-170, CCIR
- Interface standard(s)
NTSC-M, PAL-B/G, RS-170, CCIR
- Connectors
VIDEO 1 to VIDEO 4: BNC female connectors on the bracket for composite video inputs
VEB LINK 0 to VEB LINK 3: 10-pin shrouded header connectors on the PCB for VEB modules
- Termination resistor
Selectable using switches on the bracket
- Native resolution
Square pixels, broadcast and custom resolutions
- Frame rate
Up to 25/30 images per second, 50/60 fields per second per input
Total 100/120 images per second with up to 16 cameras
- Number of cameras
16
- Number of cameras (at full frame rate)
4
- Maximum number of cameras
16
Video delivery
- Raw video format(s)
Packed RGB color formats: RGB15, RGB16, RGB24, RGB32
Planar RGB color formats: RGB24PL
Packed YUV color formats: YUV411, YUV422, YUV444
Planar YUV color formats: YUV411PL, YUV422PL, YUV444PL, YUV411PL, YUV422PL
Monochrome formats: Y8
- Deliverable video resolution (SD)
Frame, field, CIF, QCIF and custom image formats
Area-scan camera control
- Trigger
Hardware trigger for up to four cameras
With configurable noise removal filter and optional delay
- Strobe
Hardware strobe signal for up to four cameras
With programmable position and duration
General Purpose Inputs and Outputs
- Number of lines
9 I/O lines:
4 contact closure inputs (IN)
5 solid-state relay outputs (OUT)
- Connectors
I/O: 20-pin dual-row 0.1" shrouded header on the PCB
- Usage
General purpose IO
- Electrical specifications
IN: Polarity-free inputs, compatible with TTL, 12V and 24V signals, opto-couplers, relays and switches
OUT: Opto-isolated potential-free and polarity-free solid-state outputs, compatible with signals up to 30V, with 4 µs fall time, isolated up to 500V
- Watchdog
Yes
Software
- Host PC Operating System
Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures
Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures
Refer to release notes for details
- APIs
MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers
DirectShow 32- and 64-bit filters (Windows only), for Microsoft Visual C++ compilers
Environmental conditions
- Operating ambient air temperature
0 °C to +50 °C / +32 °F to +122 °F
- Operating ambient air humidity
10% to 90% RH non-condensing
- Storage ambient air temperature
-20 °C to +70 °C/ -4 °F to +158 °F
- Storage ambient air humidity
10% to 90% RH non-condensing
Certifications
- EMC standards
European Council EMC Directive 2004/108/EC
United States FCC rule 47 CFR 15
- EMC - Emission
EN 55022:2010 Class B
FCC 47 Part 15 Class B
- EMC - Immunity
EN 55024:2010 Class B
EN 61000-4-2
EN 61000-4-3
EN 61000-4-5
EN 61000-4-6
- KC Certification
Korean Radio Waves Act, Article 58-2, Clause 3
- Flammability
PCB compliant with UL 94 V-0
- RoHS
European Union Directive 2015/863 (ROHS3)
- REACH
European Union Regulation 1907/2006
- WEEE
Must be disposed of separately from normal household waste and must be recycled according to local regulations
Ordering Information
- Product code - Description
PC1641 Picolo Alert PCIe
- Related products
PC1203 VEB
