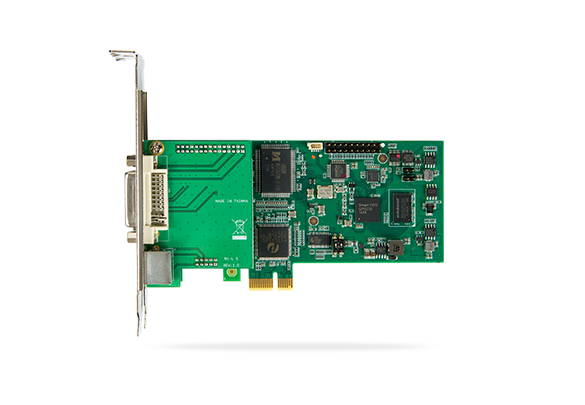

Picolo HD 3G DVI - Euresys

3G 60FPS DVI HD 1080p 비디오 캡처 카드

DVI, Y/Pr/Pb, S-Video 또는 CVBS 비디오 소스에서 비디오 및 오디오 캡처

HD 1920x1080p50/60

SD 525i60 및 625i50

범용 I/O 라인 16개

PCIe(2.0) Gen2 x1 버스

데이터시트

비교 구매처 안내

Picolo HD 3G DVI

© EURESYS S.A. - Subject to change without notice


8/14/2024 Datasheet Picolo HD 3G DVI 3G 60FPS DVI HD 1080p 비디오 캡처 카드 DVI, Y/Pr/Pb, S-Video 또는 CVBS 비디오 소스에서 비디오 및 오디오 캡처 HD 1920x1080p50/60 SD 525i60 및 625i50 범용 I/O 라인 16개 PCIe(2.0) Gen2 x1 버스 Main benefits Other benefits 사양 Mechanical Form factor PCI Express card Format Low profile, half length, 1-lane PCI Express card with optional "Bypass module"on second slot bracket Dimensions L 135 mm x H 68 mm L 5.31 in x H 2.68 in Weight 73 g, 2.57 oz, without "Bypass module" 108 g, 3.81 oz, with "Bypass module" Host bus Standard PCI Express 2.0 Link width 1 lane Link speed 5.0 GT/s (PCIe 2.0) Peak delivery bandwidth 512 MB/s Power consumption Max. 4.1 W Camera / video inputs Camera interface standard DVI-I, Analog Interface standard(s) DVI-D for HD digital video DVI-A and Y/Pb/Pr for HD analog video S-Video for SD analog Y/C video CVBS for SD analog composite video Connectors DVI-I Input: DVI-I socket(female) connector on the bracket for digital and analog video inputs YCbCr/AVS Inputs: mini-DIN female connector on the bracket for one of the following cable: Y/Pb/Pr/L/R component cable S-Video/CVBS/L/R component cable The Y/Pb/Pr/L/R component cable provides: Y/Pb/Pr: three RCA female connectors for analog HD component video inputs The S-Video/CVBS/L/R component cable provides: S-Video: one 4-pin mini-DIN female connector for analog SD component video inputs CVBS: one RCA female connector for analog SD composite video input Formats and standards (HD) Up to 1080p60 / 1080i60 / 720p60 Formats and standards (SD) 525i60 (NTSC M, NTSC J, PAL M) 625i50 (PAL B/D/G/H/I, PAL N) Number of cameras 1 Maximum number of cameras 1 Video delivery Raw video format(s) YUY2, Packed YUV 4:2:2 Deliverable video resolution (HD) 1080p or 1080i source : 1920 x 1080 down to 640 x 480 720p source: 1280 x 720 down to 640 x 480 Deliverable video resolution (SD) 525i60 source: 720 x 480 626i50 source: 720 x 576 Audio / Video Outputs Loop-through All digital and analog, audio and video input signals are replicated on the connectors of the bypass module Connectors DVI-I Output: DVI-I socket(female) connector on the bypass module bracket for digital and analog video outputs YCbCr/AVS Outputs: mini-DIN female connector on the bypass module bracket for one of the following cables: Y/Pb/Pr/L/R component cable S-Video/CVBS/L/R component The Y/Pb/Pr/L/R component cable provides: Y/Pb/Pr: 3 RCA female connectors for analog HD component video outputs The S-Video/CVBS/L/R component cable provides: S-Video: 1 4-pin mini-DIN female connector for analog SD component video outputs CVBS: 1 RCA female connector for analog SD composite video Audio inputs Number of inputs 1, Stereo Type L/R Audio: Two line-level analog audio inputs Audio format 16-bit Linear PCM 32 kHz, 44.1 kHz or 48 kHz Connectors YCbCr/AVS Inputs: mini-DIN female connector on the bracket for one of the following cable: Y/Pb/Pr/L/R component cable S-Video/CVBS/L/R component cable The Y/Pb/Pr/L/R component cable provides: L/R : one twin RCA female connector for analog audio inputs The S-Video/CVBS/L/R component cable provides: L/R: two RCA female connectors for analog audio inputs Audio outputs Connectors YCbCr/AVS INPUTS: mini-DIN female connector on the bracket for one of the following cables: Y/PB/Pr/L/R component cable S-video/CVBS/L/R component cable The Y/PB/Pr/L/R component cable provides: L/R : 1 twin RCA female connector for analog audio outputs The S-video/CVBS/L/R component cable provides: L/R: 2 RCA female connectors for analog audio outputs General Purpose Inputs and Outputs Number of lines 16 I/O lines (IO) Connectors I/O: 20-pin dual-row 0.1" header on the PCB WATCHDOG: 4-pin dual-row 0.1" header on the PCB Usage General purpose IO Electrical specifications IO: Quasi-bidirectional I/O lines, individually configurable as input or output Host system requirements Processor Minimum: Core 2 Duo or better Recommended: Intel 2nd/ 3rd Generation Core i3/i5/i7 System memory Minimum: 2GB DDR3 Recommended: 4GB DDR3 (dual channel) or better Graphic card Minimum: Supports DirectX 9 or higher Recommended: Intel HD2000/2500/3000/4000 or better Software Host PC Operating System Microsoft Windows 10 for x86 (32-bit) and x86-64 (64-bit) processor architectures Microsoft Windows 11 for x86-64 (64-bit) processor architecture APIs MultiCam for Picolo HD 32- and 64-bit binary libraries for ISO-compliant C/C++ compilers DirectShow filters for Microsoft Visual C++ compilers, for 32- and 64-bit applications DirectShow .NET C# Environmental conditions Operating ambient air temperature 0 °C to +50 °C / +32 °F to +122 °F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20 °C to +70 °C/ -4 °F to +158 °F Storage ambient air humidity 10% to 90% RH non-condensing Certifications EMC standards European Council EMC Directive 2014/30/EU United States FCC rule 47 CFR 15 EMC - Emission EN 55022:2010 Class B FCC 47 Part 15 Class B EMC - Immunity EN 55024:2010 / CISPR 24:2010 EN 61000-4-2:2009 EN 61000-4-3:2006 + A2:2010 EN 61000-4-4:2012 EN 61000-4-8:2010 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Ordering Information Product code - Description PC1843-2 Picolo HD 3G DVI Included accessories PC1844 - Picolo HD Y/Pb/Pr/L+R Analog A/V Cable PC1845 - Picolo HD S-Video/CVBS/L+R Analog A/V Cable PC1846 - Picolo HD Watchdog Cable Related products PC1845 Picolo HD S-Video/CVBS/L+R Analog A/V Cable PC1846 Picolo HD Watchdog Cable Offices 유럽, 중동 및 아프리카 Euresys SA Contact support : [email protected] Sensor to Image GMBH Contact support : [email protected] 중국 Euresys Shanghai Liaison Office Contact support : [email protected] Euresys Shenzhen Liaison Office Contact support : [email protected] 일본 Euresys Japan K.K. Contact support : Support [email protected] 한국 Euresys 한국 연락사무소 Contact support : [email protected] 아시아(기타 국가) Euresys Pte. Ltd. Contact support : [email protected] 북, 중남미 Euresys Inc. Contact support : [email protected]
