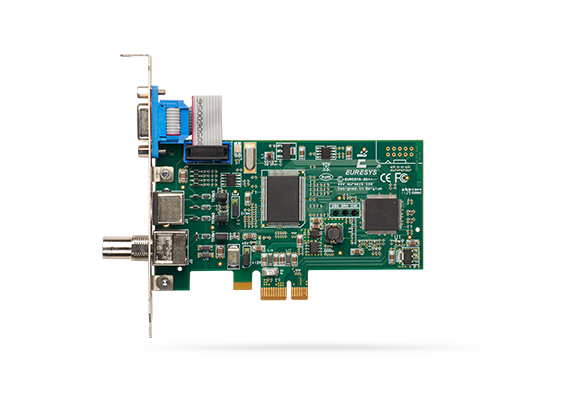

Picolo PCIe - Euresys

표준 PAL/NTSC 카메라용 BNC 및 S-Video 커넥터 내장 PCIe 비디오 캡처 카드

BNC, DB9, S-Video 커넥터

PCIe x1 버스

복합신호 또는 S-Video 신호 캡처

비디오 디코더 1개, 초당 이미지 25/30장(초당 50/60필드)

PCI 및 PCIe 버전 공급

데이터시트

비교 구매처 안내

© EURESYS S.A. - Subject to change without notice


8/23/2024 Datasheet Picolo PCIe 표준 PAL/NTSC 카메라용 BNC 및 S-Video 커넥터 내장 PCIe 비디오 캡처 카드 BNC, DB9, S-Video 커넥터 PCIe x1 버스 복합신호 또는 S-Video 신호 캡처 비디오 디코더 1개, 초당 이미지 25/30장(초당 50/60필드) PCI 및 PCIe 버전 공급 사양 Mechanical Form factor PCI Express card Format Low profile, half length, 1-lane PCI Express card Dimensions L 115.00 mm x H 64.40 mm Weight Net weight: 75 g [2.6 oz] Gross weight: 177 g [6.2 oz] Host bus Link speed 2.5 GT/s (PCIe 1.0) Standard PCI Express 1.0 Link width 1 lane DMA 32-bit Peak delivery bandwidth 256 MB/s Power consumption Max. 2.6 W (200 mA @ +3.3V, 160 mA @ +12V), excluding I/O power output Camera / video inputs Camera interface standard NTSC, PAL, RS-170, CCIR Termination resistor Selectable using jumpers on the PCB Native resolution Square pixels, broadcast and custom resolutions Frame rate Up to 25/30 images per second, 50/60 fields per second Number of cameras 3 Interface standard(s) NTSC-M, PAL-B/G, RS-170, CCIR Number of cameras (at full frame rate) 1 Maximum number of cameras 1 Connectors VIDEO 1: BNC female connector on the bracket for composite video input S-VIDEO: 4-pin mini-DIN female connector on the bracket for components video input DB9: 9-pin sub-D female connector on the bracket (not available with low-profile bracket) Internal: 10-pin shrouded male header on the PCB General Purpose Inputs and Outputs Number of lines 4 I/O lines (IO) Connectors DB9: 9-pin female sub-D connector on the bracket (not available when the low-profile bracket is installed) INTERNAL: 10-pin dual-row 0.1" shrouded header on the PCB Usage General purpose IO Electrical specifications IO: TTL-compatible I/O lines Software APIs MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers DirectShow 32- and 64-bit filters (Windows only), for Microsoft Visual C++ compilers Host PC Operating System Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures Refer to release notes for details Environmental conditions Operating ambient air temperature 0 °C to +50 °C / +32 °F to +122 °F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20 °C to +70 °C/ -4 °F to +158 °F Storage ambient air humidity 10% to 90% RH non-condensing Certifications KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Electromagnetic - EMC standards European Council EMC Directive 2004/108/EC United States FCC rule 47 CFR 15 EMC - Emission EN 55022:2010 Class B FCC 47 Part 15 Class B EMC - Immunity EN 55024:2010 Class B EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 Video delivery Raw video format(s) Planar, packed, YUV and RGB color formats Deliverable video resolution (SD) Frame, field, CIF, QCIF and custom image formats Ordering Information Product code - Description PC1685 Picolo PCIe Offices 유럽, 중동 및 아프리카 Euresys SA Contact support : [email protected] Sensor to Image GMBH Contact support : [email protected] 중국 Euresys Shanghai Liaison Office Contact support : [email protected] Euresys Shenzhen Liaison Office Contact support : [email protected] 일본 Euresys Japan K.K. Contact support : Support [email protected] 한국 Euresys 한국 연락사무소 Contact support : [email protected] 아시아(기타 국가) Euresys Pte. Ltd. Contact support : [email protected] 북, 중남미 Euresys Inc. Contact support : [email protected]
