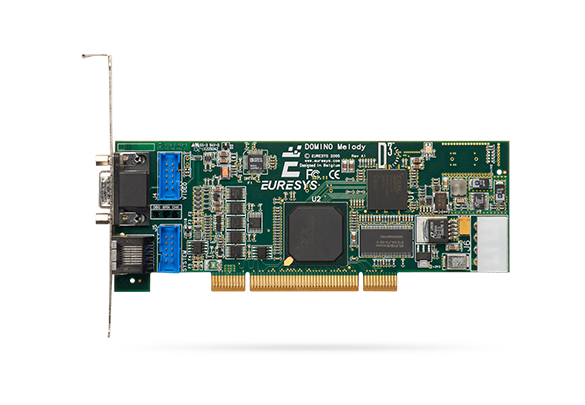

Domino Melody - Euresys

シングルタップ非標準アナログカメラ1台用のロープロファイルフレームグラバー

8または10ビットLUTを搭載した10ビット40MHz A/Dコンバーター

32 ビット 33 MHz PCIバス、レギュラーおよびロープロファイルブラケット

同期ジッターを極小に抑えるD³ technology採用

メガピクセルのプログレッシブスキャン/インターレースカメラ、非同期リセット、露光制御に対応

トリガー、ストロボ、汎用I/Oライン

データシート

比較販売店

© EURESYS S.A. - Subject to change without notice


8/14/2024 Datasheet Domino Melody シングルタップ非標準アナログカメラ1台用のロープロファイルフレームグラバー 8または10ビットLUTを搭載した10ビット40MHz A/Dコンバーター 32 ビット 33 MHz PCIバス、レギュラーおよびロープロファイルブラケット同期ジッターを極小に抑えるD³ technology採用メガピクセルのプログレッシブスキャン/インターレースカメラ、非同期リセット、露光制御に対応トリガー、ストロボ、汎用I/Oライン Main benefits 仕様 Mechanical Form factor PCI card Format Low profile, half-length, 32-bit Conventional PCI card Dimensions L 168 mm x H 64 mm L 6.6 in x H 2.21 in Weight Net weight: 82 g [2.9 oz] Gross weight: 185 g [6.5 oz] Host bus Standard PCI 32-bit, 33 MHz, 3.3 V and 5 V signaling DMA 32-bit Peak delivery bandwidth 132 MB/s Effective (sustained) delivery bandwidth 90 MB/s (Host PC motherboard dependent) Power consumption Max. 6.8 W (1.45 A @ +3.3V, 400 mA @ +5V), excluding I/O power output Camera / video inputs Camera interface standard Non-standard analog Termination resistor Selectable by software Maximum camera line rate 49.5 kHz in synchronous mode 31.5 kHz in asynchronous reset mode Number of cameras One single-tap camera Interface standard(s) Non-standard Analog Number of cameras (at full frame rate) 1 Maximum number of cameras 1 Connectors CAMERA: high-density sub-D 15-pin male connector on the bracket Camera internal: 10-pin shrouded header video connector on the PCB A/D converter One, 10-bit, 40 MHz On-board processing On-board memory 16 MB (8 MB for image data) Input LUT (Lookup Table) 1 x 8- or 10-bit LUT General Purpose Inputs and Outputs Number of lines 4 I/O lines: 1 differential input (TR) 1 opto-isolated output (ST) 2 TTL inputs/outputs (ENHANCED IO) Connectors SYSTEM: 8-pin RJ-45 connector on the bracket SYSTEM INTERNAL: 10-pin dual-row 0.1" shrouded header on the PCB CAMERA POWER: 4-pin Molex connector on the PCB for camera powering Usage Camera and image acquisition trigger Light strobe trigger General purpose IO Electrical specifications TR: Inputs compatible with TTL, LVTTL, differential LVDS, differential RS-422, differential RS-485 signals, protected against electrostatic discharge, with choke for the rejection of common-mode noise ST: Opto-isolated outputs, compatible with signals up to 60V, with 3 µs fall time, isolated up to 500V ENHANCED IO Inputs or outputs compatible with TTL signals, protected against electrostatic discharge, with high-frequency noise filter Software APIs MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers Host PC Operating System Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures Refer to release notes for details Environmental conditions Operating ambient air temperature 0 °C to +50 °C / +32 °F to +122 °F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20 °C to +70 °C/ -4 °F to +158 °F Storage ambient air humidity 10% to 90% RH non-condensing Certifications KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Electromagnetic - EMC standards European Council EMC Directive 2004/108/EC United States FCC rule 47 CFR 15 EMC - Emission EN 55022:2010 Class B FCC 47 Part 15 Class B EMC - Immunity EN 55024:2010 Class B EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 Ordering Information Product code - Description PC1167 Domino Melody Offices ヨーロッパ、中東、アフリカ地区 Euresys SA Contact support : [email protected] Sensor to Image GMBH Contact support : [email protected] 中国 Euresys上海リエゾン支店 Contact support : [email protected] Euresys深センリエゾン支店 Contact support : [email protected] 日本 Euresys Japan K.K. Contact support : Support [email protected] 韓国 Euresys韓国リエゾン支店 Contact support : [email protected] アジア地区（その他の国） Euresys Pte. Ltd. Contact support : [email protected] 北米、中米、南米地区 Euresys Inc. Contact support : [email protected]
