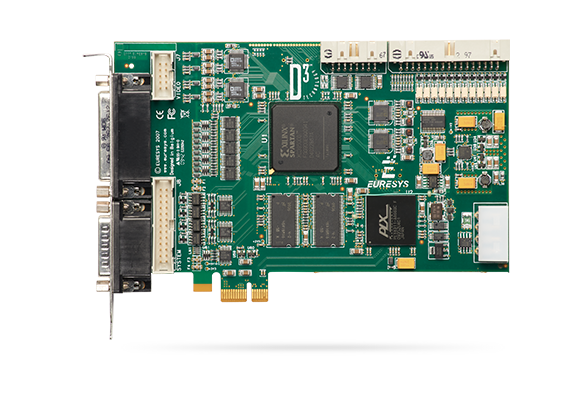

Domino Symphony PCIe - Euresys

用于四个单头非标模拟相机的图像采集卡

4个10 位 65 MHzA/D 转换器，带有 8 或 10位LUT

PCIe x1 总线

极低同步抖动的 D³ 技术

支持百万像素逐行扫描和隔行相机、异步复位和曝光控制

触发，闪光及通用 I/O 线

比较购买地点

© EURESYS S.A. - Subject to change without notice


8/26/2024 Datasheet Domino Symphony PCIe 用于四个单头非标模拟相机的图像采集卡 4个10 位 65 MHzA/D 转换器，带有 8 或 10位LUT PCIe x1 总线极低同步抖动的 D³ 技术支持百万像素逐行扫描和隔行相机、异步复位和曝光控制触发，闪光及通用 I/O 线 Main benefits 规格 Mechanical Form factor PCI Express card Format Standard profile, half length, 1-lane PCI Express card Dimensions PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in Weight Net weight: 168 g [5.9 oz] Gross weight: 240 g [8.5 oz] Host bus Link speed 2.5 GT/s (PCIe 1.0) Standard PCI Express 1.0 Link width 1 lane DMA 32-bit Peak delivery bandwidth 256 MB/s Effective (sustained) delivery bandwidth 180 MB/s (Host PC motherboard dependent) Power consumption Typ. 8.3 W (940 mA @ +3.3V, 430 mA @ +12V), excluding I/O power output Camera / video inputs Termination resistor Selectable by software Maximum camera line rate 52.5 kHz Camera interface standard Non-standard analog Number of cameras Four single-tap cameras Interface standard(s) Non-standard Analog Number of cameras (at full frame rate) 4 Maximum number of cameras 4 Connectors CAMERAS: high-density sub-D 44-pin male connector for video and camera control Internal video: 10-pin shrouded header video connector on the PCB A/D converter Four, 10-bit, 65 MHz On-board processing On-board memory 64 MB (32 MB for image data) Input LUT (Lookup Table) 4 x 8- or 10-bit LUT General Purpose Inputs and Outputs Number of lines 32 I/O lines: 4 contact inputs (Factory I/O: IN) 12 relay outputs (Factory I/O: OUT) 4 TTL inputs/outputs (System: IO) 4 differential inputs (System: TR) 4 opto-isolated outputs (System: ST) 4 full-duplex serial com ports (Camera COM: RX/TX) Connectors EXTERNAL SYSTEM: 26-pin high-density male sub-D connector on the bracket INTERNAL SYSTEM: 26-pin dual-row 0.1" shrouded header on the PCB FACTORY I/O: 34-pin dual-row 0.1" shrouded header on the PCB CAMERA COM: 16-pin dual-row 0.1" shrouded header on the PCB Molex 4-pin connector on the PCB for powering cameras Usage Camera and image acquisition trigger Light strobe trigger General purpose IO Electrical specifications TR: Inputs compatible with TTL, LVTTL, differential LVDS, differential RS-422, differential RS-485 signals, protected against electrostatic discharge, with choke for the rejection of common-mode noise ST: Opto-isolated outputs, compatible with signals up to 60V, with 3 µs fall time, isolated up to 500V IO: Inputs or outputs compatible with TTL signals, protected against electrostatic discharge, with high-frequency noise filter IN: Polarity-free inputs, compatible with TTL, 12V and 24V signals, opto-couplers, relays and switches OUT: Opto-isolated potential-free and polarity-free solid-state outputs, compatible with signals up to 30V, with 4 µs fall time, isolated up to 500V COM: RS232 asynchronous serial communication lines to control the cameras (exposed to the OS as standard COM ports) Software APIs MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers Host PC Operating System Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures Refer to release notes for details Environmental conditions Operating ambient air temperature 0 °C to +50 °C / +32 °F to +122 °F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20 °C to +70 °C/ -4 °F to +158 °F Storage ambient air humidity 10% to 90% RH non-condensing Certifications KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Electromagnetic - EMC standards European Council EMC Directive 2004/108/EC EMC - Emission EN 55022:2010 Class B EMC - Immunity EN 55024:2010 Class B Ordering Information Product code - Description 1601 Domino Symphony PCIe Related products 6011 Symphony Spider Cable Offices 欧洲、中东和非洲 Euresys SA Contact support : [email protected] Sensor to Image GMBH Contact support : [email protected] 中国 Euresys 上海联络处 Contact support : [email protected] Euresys 深圳联络处 Contact support : [email protected] 日本 Euresys日本K.K. Contact support : Support [email protected] 韩国 Euresys 韩国联络处 Contact support : [email protected] 亚洲（其他国家/地区） Euresys Pte. Ltd. Contact support : [email protected] 北美、中美和南美 Euresys Inc. Contact support : [email protected]
